"Swan-Retro E tour sport "

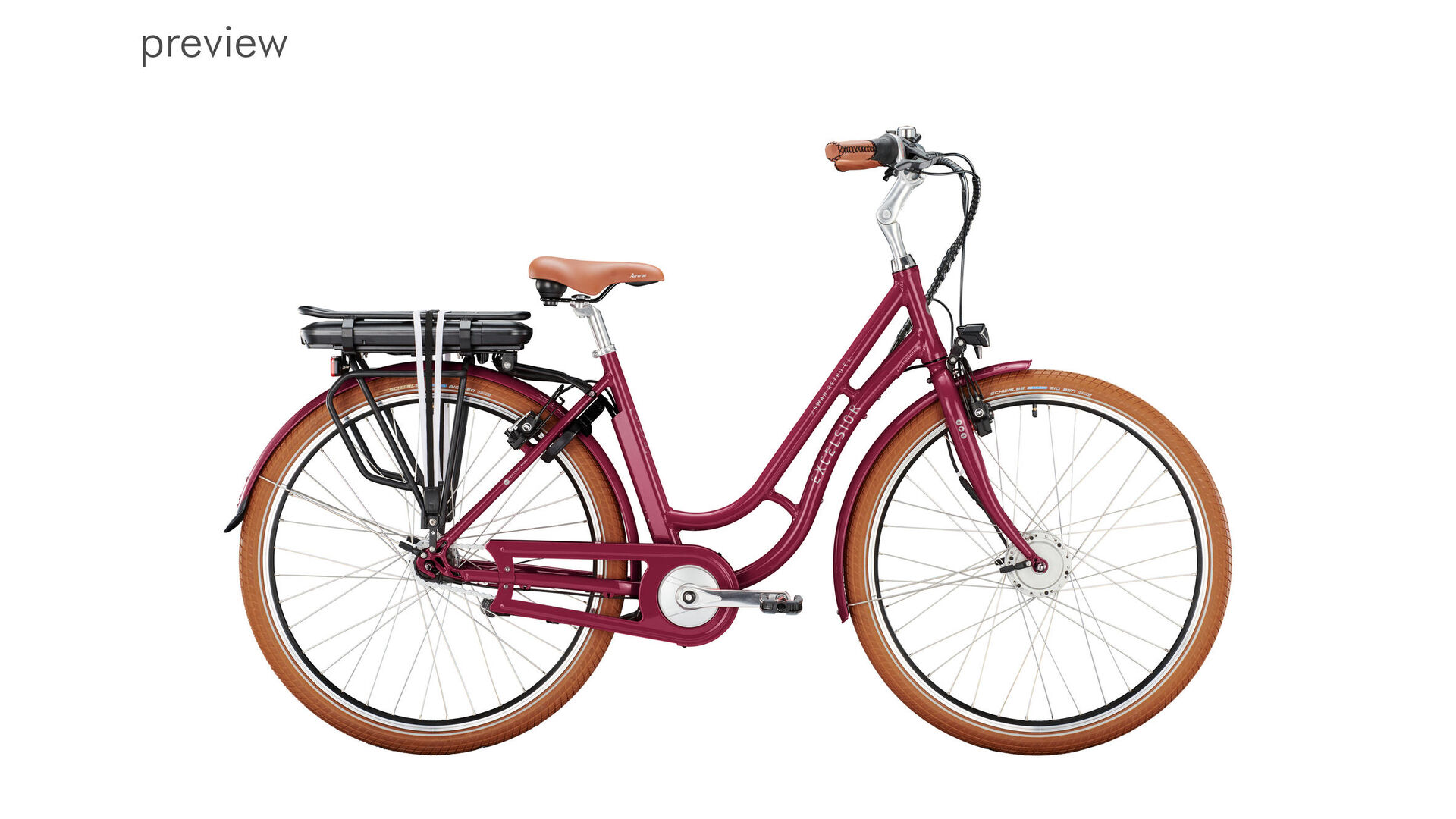

You like to ride relaxed through the city? Do you like to use your bike to visit friends or to go shopping? The stylish and nostalgic city bike"Swan Retro-E" from EXCELSIOR is made for that. At a great price-performance ratio, this e-bike brings an elegant touch to your everyday cycling life.
The shapely aluminum frame gives the comfortable, upright riding position in which you get a good overview of the traffic. The comfortable and wide saddle, which remains true to the Retro Line with its classic design, ensures a high level of comfort. Further comfort comes from the 50mm wide tires, which cushion confidently and make you more visible in traffic thanks to their side reflective stripes.
The hydraulic rim brakes in combination with coaster provide reliable deceleration.
The welcome tailwind is generated by the ANANDA front motor, which is located in the hub. The advantage of a front motor is that it provides immediate support when starting off - regardless of which gear is currently engaged. The e-drive has a rated continuous power of 250 W, while the lithium-ion battery housed on the rear rack has a capacity of 468 Wh.
Shifting by 7-speed SHIMANO "Nexus" internal gear hub, which is particularly low-maintenance and durable. Ideal for those who just want to get on their e-bike and go and without constant battery charging or high maintenance.
The shapely aluminum frame gives the comfortable, upright riding position in which you get a good overview of the traffic. The comfortable and wide saddle, which remains true to the Retro Line with its classic design, ensures a high level of comfort. Further comfort comes from the 50mm wide tires, which cushion confidently and make you more visible in traffic thanks to their side reflective stripes.
The hydraulic rim brakes in combination with coaster provide reliable deceleration.
The welcome tailwind is generated by the ANANDA front motor, which is located in the hub. The advantage of a front motor is that it provides immediate support when starting off - regardless of which gear is currently engaged. The e-drive has a rated continuous power of 250 W, while the lithium-ion battery housed on the rear rack has a capacity of 468 Wh.
Shifting by 7-speed SHIMANO "Nexus" internal gear hub, which is particularly low-maintenance and durable. Ideal for those who just want to get on their e-bike and go and without constant battery charging or high maintenance.
Spezifikationen "EXCELSIOR Swan-Retro E tour sport (2023)"
Frame: | aluminium, touring, 53cm |
Fork: | 28", Stahl, 1 1/8", 215 mm Schaft, Gewinde, Felgenbremse, bordeaux |
Headset: | VP components "MH-308ET", EC 34/25,4 / ZS44/30, 1 1/8", Gewinde, schwarz |
Crank set: | 4-kant, 170 mm, 38 Zähne, Aluminium / Stahl, silber |
Crank arm: | 170 mm |
Chain ring / belt ring: | 38 Z. |
Bottom Bracket: | THUN "Paso-ML", square, BSA, axle length: 128mm, housing width: 68 / 73mm |
Brakes: | MAGURA "HS 11", hydraulische Felgenbremse |
Bremse V.R.: | MAGURA "HS11", hydraulic |
Bremse H.R.: | MAGURA "HS11", hydraulic |
Brake lever: | MAGURA |
Shifting lever: | SHIMANO "Nexus SL-C3000-7", 7-speed, silver |
Cassette / belt sprocket: | SHIMANO "SM-GEAR", 18 teeth |
Chain / belt: | KMC "Z610 EPT" |
Drive unit: | ANANDA "M129F", 36 V, 250 W, 36 holes, silver |
Battery: | Greenway "YJ145", 468 Wh |
Charger: | Greenway "XVE 4200200", 2 A, 42 V |
Display: | ANANDA "D13" LCD display, 5-levels |
Sensor: | ANANDA "S9", right side, cable length. 550mm |
Rims: | 21-622, 36 holes, rim brake, eyelets, matt black |
Spokes: | Niro, 2,34 mm |
Front hub: | ANANDA "M129F", 36 V, 250 W, 36 holes, silver |
Rear hub: | SHIMANO "Nexus SG-C3001-7C", 7-speed, coaster brake, 36 holes, silver |
Front tires: | Wanda/OBOR "Mambo" 50-622, reflex, brown |
Rear tires: | VEE RUBBER "447", 47-622, reflex |
Handle bar: | ZOOM "NR-AL-124BT FOV", 620mm, Ø 31,8mm, silver |
Stem: | ZOOM "MTS-C269-5", Ø 25,4mm, 25,4mm handlebar clamp, shaft length: 180mm, adjustable, black |
Grips: | SELLE ROYAL "Ergo", 95/136mm, brown |
Saddle: | SELLE ROYAL "RVS", unisex, relaxed, brown |
Seat post: | ZOOM "SP-C207", Ø 27,2mm, 300mm long, silver |
Chain guard: | HERRMANS "KS 38", steel, 38 teeth, bordeaux |
Mud Guards: | BÜCHEL, steel, 55mm, bordeaux |
Carrier: | aluminium, frame assembly, for Greenway batery "YJ145", black |
Front light: | CONTEC "DLUX 30 E+", 30 lux |
Tail light: | CONTEC "TL-335 E", distance between screws: 50mm |
Frame Lock: | AXA "Solid Plus", for power pack, BES2, long key |
Battery Lock: | AXA "Solid Plus", for power pack, BES2, long key |
Kickstand: | URSUS "78 - King", adjustable, matt black |
Pedals: | UNION "SP-823" |
Technical data
Category: | city bike |
E-bike: | yes |
Bosch Smart System: | no |
Drive system: | Ananda |
Drive version: | front motor |
Battery capacity: | 468 Wh |
Support: | till 25km/h |
Sex: | ladies |
Frame shape: | tour sport |
Frame height: | 53 cm |
Wheel size: | 28" |
Drive: | chain drive |
Shifting type: | hub gear |
Gears: | 7-speed |
Circuit brand: | Shimano |
Shifting model: | Nexus |
Brake system: | coaster brake |
Features: | frame lock |
Permissible total weight: | 120 kg |
Material: | aluminium |
Colour: | red |
Colour designation: | bordeaux |
Weight: | 24,80 kg |
EAN | 4251507996198 |
