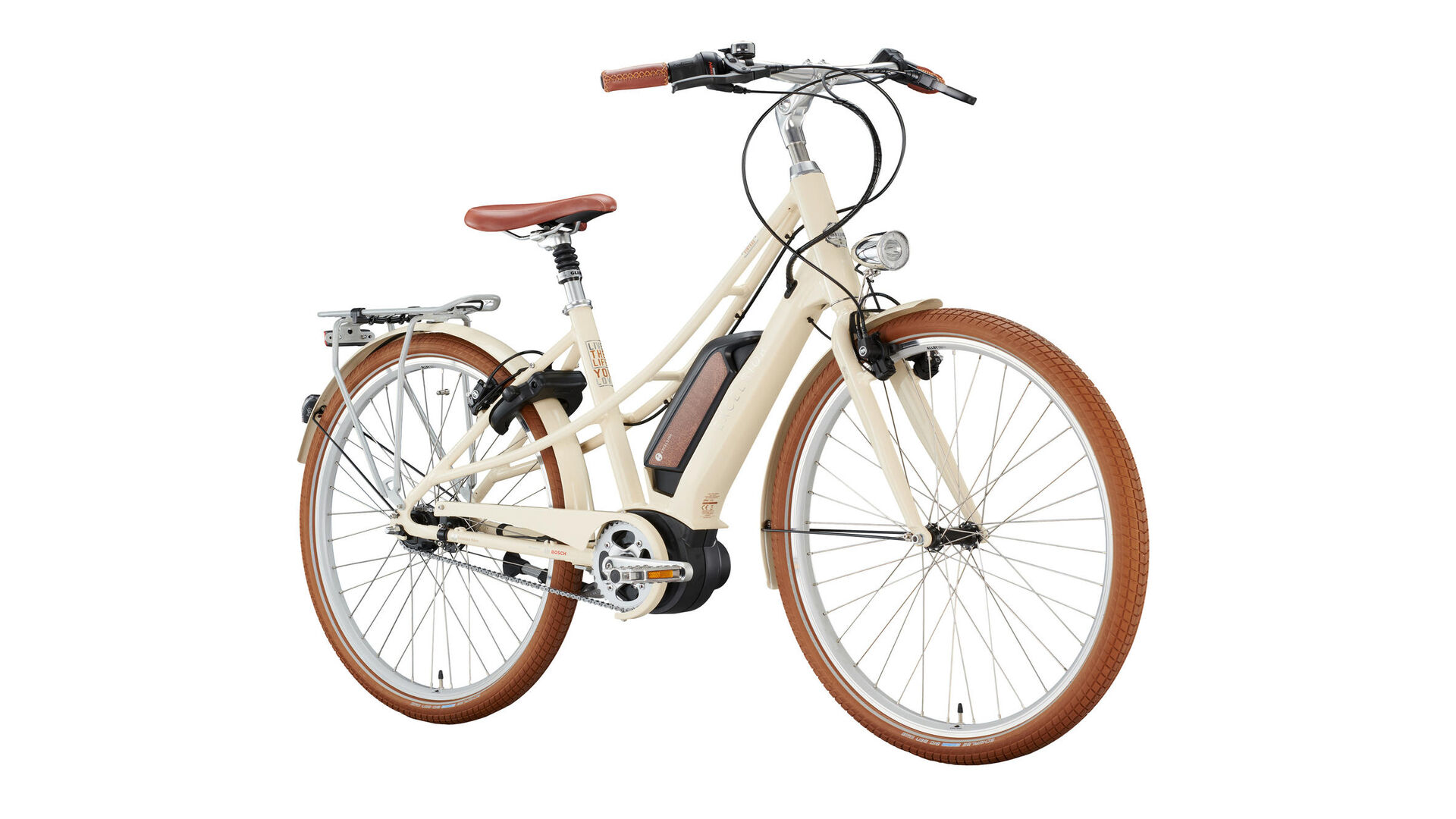

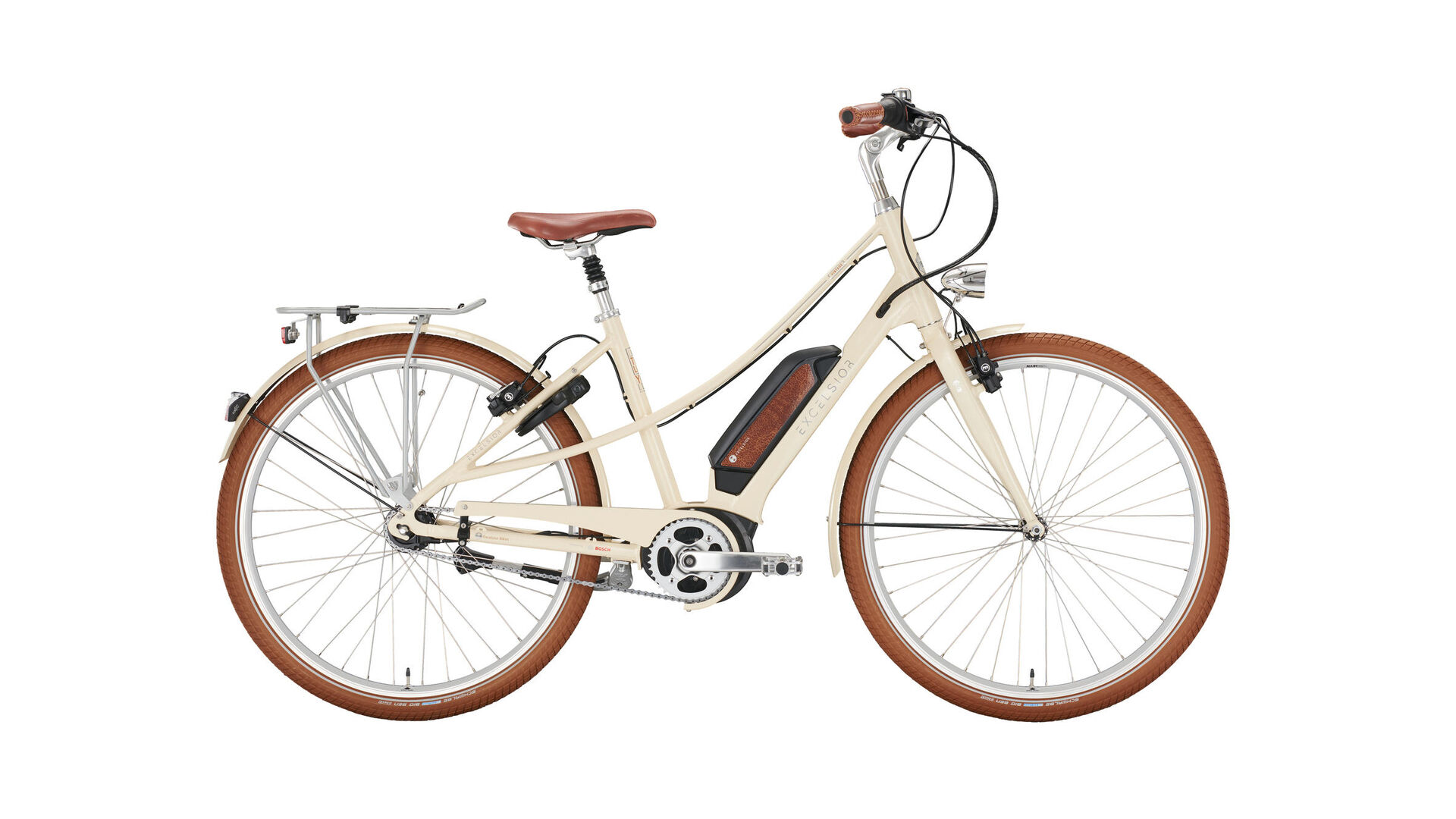

"Vintage E CB mixte "
The curved frame shape is program: as elegant and continuous and filigree the upper frame tube of the Mixte frame virtually swings through the entire "Vintage E CB" from EXCELSIOR, the pedelec also rides with élan. In the new men's variant with diamond frame, the swing is also continued. The top tube slopes slightly towards the saddle for a pleasant standover height. Both models convince with a decent price-performance ratio.
The Bosch Active Line Plus electric motor supports pedaling up to 25 km/h initially quite harmoniously, then at higher speeds powerful and persistent. The battery on the down tube supplies it with energy over 400 Wh. Shifting the seven gears of the Shimano Nexus internal gear hub is worthwhile for fine-tuning and saving energy.
Visually, the "Vintage E CB" remains a class of its own. The development engineers at EXCELSIOR have framed the drive beautifully and discreetly in the overall appearance. Even the battery in the leatherette look may fit exactly to the tires, the saddle and the handles. Elegant and modern at the same time the operability of the hydraulic rim brakes HS11 from Magura, which provide safety in addition to the coaster.
The combination of vintage elegance and modernity also fits the brakes - they brake confidently and fit naturally into the sweeping overall appearance.
The Bosch Active Line Plus electric motor supports pedaling up to 25 km/h initially quite harmoniously, then at higher speeds powerful and persistent. The battery on the down tube supplies it with energy over 400 Wh. Shifting the seven gears of the Shimano Nexus internal gear hub is worthwhile for fine-tuning and saving energy.
Visually, the "Vintage E CB" remains a class of its own. The development engineers at EXCELSIOR have framed the drive beautifully and discreetly in the overall appearance. Even the battery in the leatherette look may fit exactly to the tires, the saddle and the handles. Elegant and modern at the same time the operability of the hydraulic rim brakes HS11 from Magura, which provide safety in addition to the coaster.
The combination of vintage elegance and modernity also fits the brakes - they brake confidently and fit naturally into the sweeping overall appearance.
Spezifikationen "EXCELSIOR Vintage E CB mixte (2022)"
Frame: | Alu |
Fork: | Alu |
Crank set: | LASCO "EB07" |
Crank arm: | 170 mm |
Chain ring / belt ring: | 38 Z. |
Bottom Bracket: | BOSCH |
Brakes: | MAGURA "HS11" |
Brake lever: | MAGURA "HS11" |
Shifting lever: | SHIMANO "Nexus", 7-Gg. |
Cassette / belt sprocket: | SHIMANO, 19 Z. |
Chain / belt: | KMC "X1 EPT" |
Drive unit: | BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W |
Battery: | BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh |
Charger: | Bosch 2 Ah |
Display: | BOSCH "Purion", 4-Stufen, Schiebehilfe |
Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
Rims: | Hohlkammer, Alu, lackiert |
Spokes: | Niro |
Front hub: | SHIMANO "HB-TX500" |
Rear hub: | SHIMANO "Nexus" 7-Gg. RBN |
Front tires: | SCHWALBE "Big Ben", 50-622, Reflex |
Rear tires: | SCHWALBE "Big Ben", 50-622, Reflex |
Handle bar: | ERGOTEC "Lady Town", 620 mm, Ø 31,8 mm |
Stem: | ERGOTEC "Octopus 2", verstellbar, Ø 31,8 mm |
Grips: | VELO "VLG-519" |
Saddle: | VELO "VL-6396" |
Seat post: | ERGOTEC Patent "Glide", Ø 27,2 x 300 mm, Alu |
Chain guard: | Alu, lackiert |
Mud Guards: | Alu, lackiert |
Carrier: | MASSLOAD "CL-648", Alu, inkl. MIK-System |
Front light: | CONTEC "Retro Classic E+", LED |
Tail light: | SPANNINGA "Pixeo" |
Frame Lock: | AXA "Solid Plus" |
Kickstand: | URSUS "EASY", verstellbar, Alu |
Pedals: | VP "658" |
Technical data
Category: | city bike |
E-bike: | yes |
Bosch Smart System: | no |
Drive system: | Bosch |
Drive version: | middle motor |
Battery capacity: | 400 Wh |
Support: | till 25km/h |
Sex: | ladies |
Frame shape: | mixte |
Frame height: | 53 cm |
Wheel size: | 28" |
Drive: | chain drive |
Shifting type: | hub gear |
Gears: | 7-speed |
Circuit brand: | Shimano |
Shifting model: | Nexus |
Brake system: | coaster brake |
Features: | fender |
Permissible total weight: | 140 kg |
Material: | aluminium |
Type: | Article |
Colour: | white |
Colour designation: | Hellelfenbein |
Weight: | 24,00 kg |
EAN | 4251507971270 |
